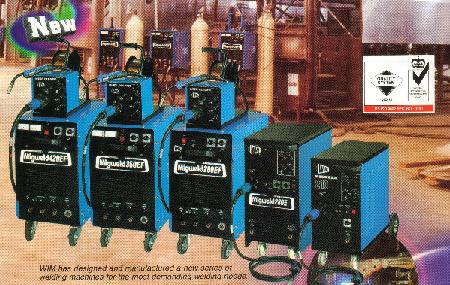

Mig Welding[Company Logo Image]

Home Up

Model

MIG 210

MIG 280E

MIG 280EF

MIG 350EF

MIG 420EF

Power Supply

1-Phase 50/60Hz

3-Phase 50/60Hz

3-Phase 50/60Hz

3-Phase 50/60Hz

3-Phase 50/60Hz

Voltage

220-240V

415V

415V

415V

415V

Max Input Current

35A

24A

24A

26A

32A

Output Rating

210A/24.5V

280A/28.0V

280A/28.0V

350A/31.5V

420A/35.0V

* Duty-Cycle

20%

40%

40%

60%

40%

Rating at 60%

120A/20V

250A/26.5V

250A/26.5V

350A/31.5V

340A/31.0V

Rating at 100%

90A/18.5V

190A/23.5V

90A/23.5V

270A/27.5V

260A/27.0V

Output Control

Tapping

Tapping

Tapping

Tapping

Tapping

Voltage Adjustment

6 Step

4 x 8 Steps

4 x 8 Steps

4 x 8 Steps

4 x 8 Steps

Open Circuit Voltage

22V-45V

19V-39V

19V-39V

19V-44V

19V-47V

Welding Range (A)

50A-210A

50A-280A

50A-280A

50A-350A

50A-420A

Filter Wire Size Range

0.8-1.0mm

0.8-1.2mm

0.8-1.2mm

0.8-1.6mm

0.8-1.6mm

Wire Feeding Speed

1~17 Meter/Min

1~17 Meter/Min

1~17 Meter/Min

1~17 Meter/Min

1~17 Meter/Min

Time (Spot/Stitch)

0-5 second

0-5 second

0-5 second

0-5 second

0-5 second

Dimensions (L x W x H) mm

800x320x640mm

960x380x750

1040x400x810

1040x400x810

1040x400x810

Weight

64kg

120kg

120kg

130kg

135kg

Insultation Class

H 180 C

H 180 C

H 180 C

H 180 C

H 180 C

Degree Of Protection

IP21S

IP21S

IP21S

IP21S

IP21S
