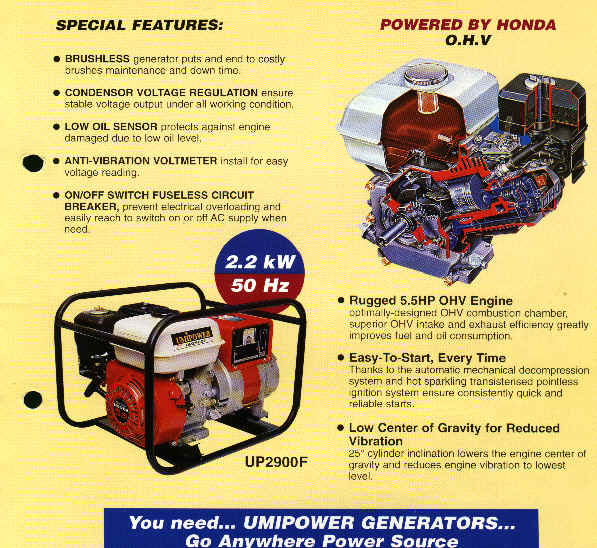

UMIPOWER - PORTABLE GASOLINE GENERATORS

Model   UP2900F
Generator   AC Frequency   50 Hz / 60 Hz
  Rated Ac Output 2.0 kW / 2.3 kW
  Maximum AC Output 2.2 kW / 2.6 kW
Engines

Model

Honda GX160
  Type Forced aircooled, 4-stroke OHV engine
  Displacement 163 cm
  Maximum Output 5.5 PS/4,000 rpm
  Ignition System Transistorised pointless
  Starting System Recoil
  Fuel Tank Capacity 3.7 litres
  Continuous Operating Hrs.  3.2 hrs ( Approx. )
  Operating Noise Level 67 db ( at 7m)
  Dry Weight 36 kg
  Dimension L x W x H (mm) 557 x 429 x 402

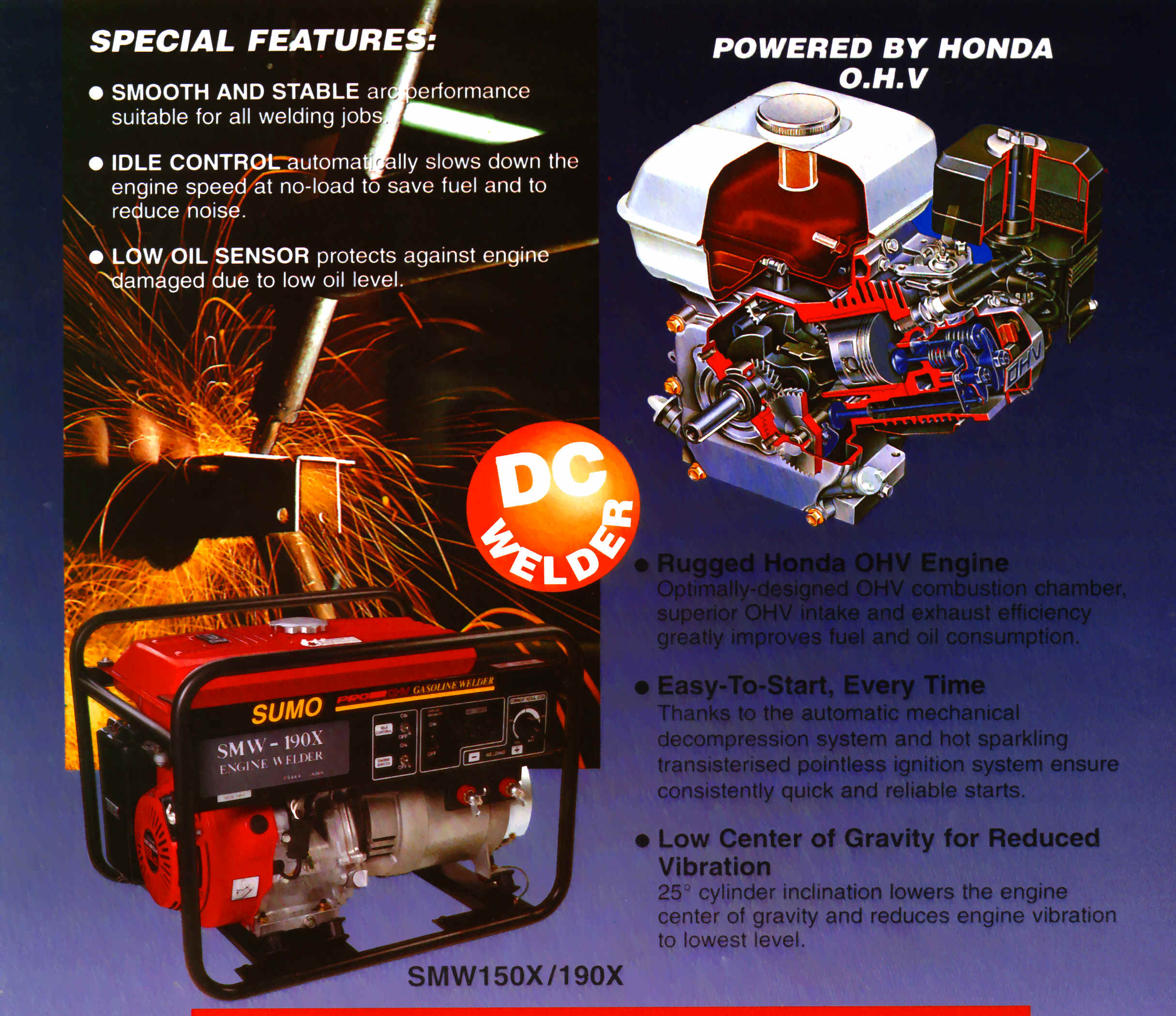

SUMO WELDING & POWER SOURCE

Model   SMW150X SMW190X
DC Welder Current Range 50-150 60-190
  Rated Voltage 26V 26V
  AC Output ( 240V/60Hz) 2.4 kW 3.3 kW
  Duty Cycle 40% 40%
  Applicable Electrode dia (mm) 2.0-3.2 2.6-4.0
  Oil Sensor Stop Automatic Automatic
  Idle Control Automatic Automatic
Engines Model ( Honda ) GX240 GX390
  Displacement ( c.c ) 242 389
  Type Aircooled,4 stroke O.H.V. Same
  Fuel Automatic Gasoline Same
  Fuel Tank Capacity 17 Litres 17 Litres
  Starting System Recoil  Same
  Dry Weight 76 kgs 85 kgs
  Dimension L x W x H (mm) 640 x 511 x 495         670 x 511 x 495
