AC ARC Welder

The modern moving coil current control.

Compact AC ARC WELDER heavy duty coils impregnated with high temperature varnish to protect against moisture, dust and terminal overload.

Fan assisted cooling for greater reliability in heavy applications.
Provision inside case for power factor correction kits if required.

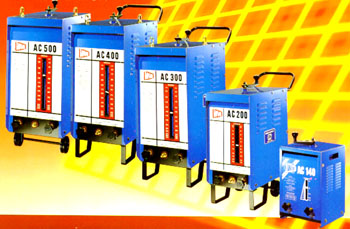

For shielded Metal-ARC [Stick] Welding Application, AC 140 200 300 400 500.

 Heavy Duty AC Welding Transformer

S P E C I F I C A T I O N
Model Rated Output Amperes Duty-Cycle At Rated Output Output At 100% Duty-Cycle Welding Amperage Range Maximum open circuit Volt Amperes input at rated load output 50/60Hz Weight in KG Dimensions (in mm) with handle
415V 230V Net Ship H W D
AC140 140 A 20% 65 A 65 - 140 50 V   32 A 40 52 505 266 300
AC200 200 A 35% 115 A L50 - 155
H70 - 220		 73 V 24 A 41 A 85 100 734 312 483
AC300 300 A 30% 160 A L80 - 250
H100 - 320		 76 V 48 A 75 A 132 164 870 350 610
AC300K with capacitor 300 A 30% 160 A L80 - 250
H100 - 320		 76 V 36 A 57 A 137 171 870 350 610
AC400 400 A 20% 180 A L100 - 350
H120 - 400		 76 V 50 A 100 A 154 188 870 350 610
AC400K with capacitor 400 A 20% 180A L100 - 350
H120 - 400		 76 V 38 A 80 A 159 193 870 350 610
AC500 500 A 40% 320 A L150 - 460
H2100 - 500		 86 V 72 A 132 A 182 222 870 350 610
AC500K with capacitor 500 A 40% 320 A L150 - 460
H210 - 500		 86 V 55 A 110 A 188 228 870 350 610



Features :
  • Movable coil provides accurate continuous current control over entire range of welding.
  • Fan assisted cooling for greater reliability in heavy applications. (Not applicable for WIM AC 140)
  • Two wide AC amperage ranges with continuos adjustment. (Not applicable for WIM AC 140)
  • Reliable and rugged outer case structure.
  • High quality construction of transformer coils with a class H insulation. These insulation are capable of withstanding temperature as high as 200 șC
  • Panel indicator shows approximate output.
  • Power factor correction kit is applicable if require.
